Videobotics CamMotion ProZ3 Direct and Network Control Sony BRC-Z330 Camera
CamMotion ProZ3 = Sony BRC-Z330 Camera + CamMotion Software - $5199.95
Powerful integrated interactive true Hi-Def robotic cam system now offered by Videobotics - at a very affordable price. The BRC-Z330: fast, silent, 350 deg pan with 18X true optical zoom. This camera *combines* Hi-Def and Standard-Def in one camera - with ability to output *both* true HD and SD video simultaneously. The built-in SD output means you can monitor this camera with standard low-cost SD video monitors (in 'squeeze', letterbox, or 'cropped' SD mode). A very sophisticated all-in-one studio-quality color camera with uniquely advanced technology features:
- Sony BRC-Z330 1-CHIP CMOS HI-DEF integrated pan/tilt/zoom robotic camera
- Camera can be oriented upright or ceiling-mounted
- Pan up to 350 degrees (+/- 175) : Tilt up to 120 degrees (down 90/up 30)
- SIMULTANEOUS HD (analog component) *AND* SD (Y/C, composite) OUTPUTS
- SD Monitor Output BUILT-IN AND BUILT-IN 15-pin HD ouput (RGB or Component)
- HD SDI through the optional HD-SDI output card
- HD Signal System Selectable: 1080i or 720i, 50Hz or 59.94Hz.
- Simultaneous output in SD: NTSC, PAL (squeezed, letterbox, or stretched - 16x9)
- High-resolution video sensor
- 18X precision optical zoom with manual and autofocus
- 16 presets of pan, tilt, zoom, and focus positions for instant access to image points of interest
- Lens optics - F1.6 to F2.8
- Lightweight and compact - only about 10.5 lb (4.8Kg), 198mm (W) x 252mm (H) x 238mm (D)
- Includes standard tripod mount and ceiling mount plates
- With AC adapter, hand-held full-function IR remote, and COM port computer control cable
- External sync input can be used for video-locking multiple cameras
- Computer Visca control via RS232 and RS422 connectors (up to 1000 meters from PC)
- Optional plug-in card for HD-SDI and other advanced features
- $6999.95 complete with HD-SDI output card and CamMotionProZ3 software suite for local and network-remote operation.
- CamMotionProZ3 software has special features in a newly enhanced version specifically designed for the Z330:
- White Balance Control
- Backlight Control
- Brightness Control
- Angle position readouts
- Continuous smooth pan/tilt motions
- 9 user-configurable buttons for scripting camera control command macro sequences
- See screen shot link, below
- Additional controls for the unique features of the Sony BRC-Z330 and its HD-SDI card
- Sony BRC-Z330 camera set only (complete w/AC adapter, remote) - $4399.95
- Optional Sony BRBK-HSD1 card for simultaneous HD and SD SDI output - $1799.95
- CosmosZ3 configurations for multi-camera video production - Call
- CamMotionProZ3 software only (for owners of existing Sony BRC-Z330): $999.95
- CosmosZ3 software only (for multiple Sony BRC-Z330): $1299.95
- RS422 Option: Add $150.00 to any of the above. Includes RS422 adapter for very long control connections to the camera's RS422 control port, up to 4000 feet from the PC.
Software Info
CamMotionProZ3 Screen Shot

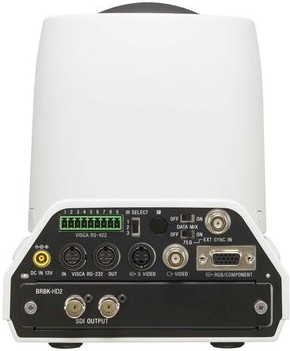

Rear View of BRC-Z330 Camera (shown with optional HD-SDI card installed)
